PTZ IP kamera Lumens VC-A50P

Name: PTZ IP kamera Lumens VC-A50P
SKU: VC-A50P
Price: 1898.35 EUR
Availability: OutOfStock

Sazināties

Salīdzināt

(Atzīmējiet 2-4 preces no kategorijas)

Ražotājs

Lumens

Tehniskie parametri

Matricas izmērs	1/2.8”
Matricas izšķirtspēja [MP]	2
Izvades izšķirtspēja	1080i 60 / 59.94 / 50 fps,, 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 fps,, 720p 60 / 59.94 / 50 fps
Zoom	20x
Mehāniskais Zoom	20x
Minimālais attālums [mm]	1200
Horizontālais leņķis (PAN)	-170° ~ +170°
Verikālais leķis (TILT)	-30° ~ +90°
Iestatītas pozīcijas	128
Savienojumi	HDMI, 3G-SDI, RJ45
Kontrole	RS-232 / RS-422 / RJ45
Fokusa garums	f = 4.7 ~ 94 mm
Diafragma	F1.6 ~ F3.5
Slēdža ātrums	1/1 ~ 1/10,000 sec
Baltā balanss	Auto, Indoor, Outdoor, One-Push, Manual
Ekspozīcija	Auto, Manual
Fokuss	Auto, Manual
Attēla apgriešana (flip)	ir
3D NR	ir
Izmērs (W x H x D) [mm]	174 x 186 x 187
Svars [kg]	2

Garantija

• Full HD 1080p signal output format with a high frame rate of 60 fps
• Supports live broadcasting (MJPEG, H.264 support SVC)
• Support POE (Power Over Ethernet) using network cables supply power
• Supports ONVIF protocol
• Supports SRT protocol that optimizes streaming performance
• Ethernet low latency ( < 120 ms)
• Ethernet, HDMI, and 3G-SDI synchronous image outputs
• Audio input support AAC encoding with 44.1/48 K sampling frequency
• Free Lumens VMS software for controlling the cameras remotely
• Optional NDI|HX with purchase of NDI|HX upgrade License on NewTek website

IP Camera

No need for extra cables, connect and control via IP.

Live Broadcasting

VC-A50P is applicable for lecture recording, videoconferencing, and live broadcasting.

SRT protocol

Supports SRT(Secure Reliable Transport) protocol that optimizes a streaming performance.

Image Quality

The VC-A50P is equipped with a professional 1/2.8 inch image sensor with Full HD 1080p output resolution. The sensor provides high color reproduction, high-definition signals, and crystal-clear image quality.

Supports PoE+ for Easy In allation

Power supplied through the PoE+ (Power over Ethernet) without additional power supply and cables that bring cost-effective and simple installation.

Wide Range Pan/Tilt/Zoom Action

The VC-A50P has a wide shooting area (pan angle from -170° to +170° ; tilt angle from -30° to +90°), as well as quiet, fast, and precise positioning movements.

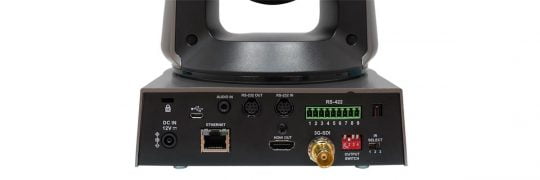

Multiple Signal Interface

The VC-A50P has multiple interfaces like Ethernet, HDMI, and 3G-SDI for simultaneous image outputs.

Audio Input Support

The VC-A50P supports stereo audio input and AAC encoding transmission through the Internet, SDI and HDMI to extend the distance of the audio device. Through this transmission, sound quality is enhanced and installation costs are reduced.

Low-Latency Streaming

The VC-A50P supports MJPEG/ H.264 / SVC video compression format which reduce the bandwidth and it also supports low-latency and the fast response time is less than 120 ms so that allows human-unnoticeable delays between live image and streaming video.

RS-232/422 Remote Control

The camera’s settings and PTZ control functions can be performed remotely at any location and at high communication speeds via the RS-232/422 interface.

Remote image monitoring for IP Control

The built-in web page allow you to use an IP browser to remotely view and control camera using a PC, Mac or mobile devices. IP video can be transmited to up to 5 terminals.

Free Camera Control Software

Free Lumens camera control software for controlling Lumens PTZ cameras and pre-view function supports 1080p with 60fps video output. Easy to adjust camera pan, tilt, zoom operation, pre-set and image setting.

Support an upgrade for NDI|HX compatibility

VC-A50P can be upgraded to support NDI|HX technology for NDI-based video production.

Lumens VC-A50P specifikācija (EN)
