Preces kods: 9610724-50

Ir noliktavā

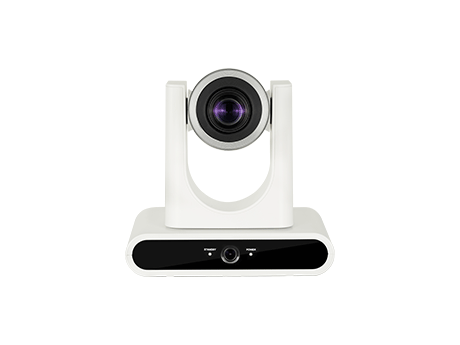

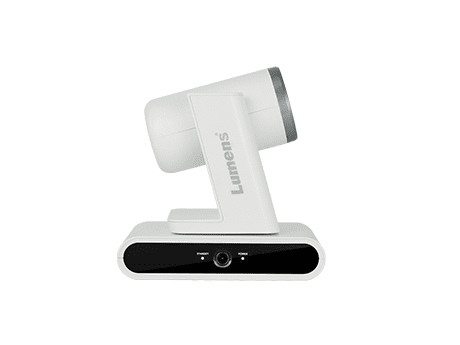

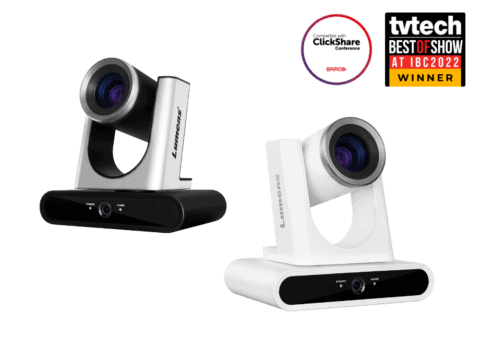

PTZ kamera Lumens VC-TR 40 ar automātiskās izsekošanas funkciju -Auto tracking, balta

1 noliktavā

€1512.50 (Cena ar PVN)

(Atzīmējiet 2-4 preces no kategorijas)
Ražotājs Lumens

Tehniskie parametri

Matricas izmērs 1/2.8”
Matricas izšķirtspēja [MP] 2
Izvades izšķirtspēja 1080p : 60 / 50 / 30 / 25, 720p : 60 / 50
Ciparu Zoom 12x
Mehāniskais Zoom 20x
Minimālais attālums [mm] 500
Horizontālais leņķis (PAN) -170° ~ +170°
Verikālais leķis (TILT) -30° ~ +90°
Iestatītas pozīcijas 256

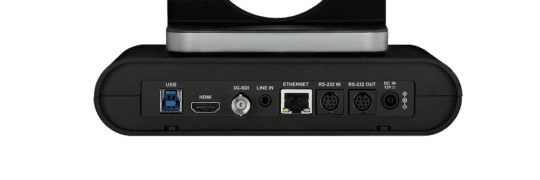

Savienojumi HDMI, 3G-SDI, RJ45,, USB, Line/Mic in, RS232 in, RS232 out
Kontrole USB, LAN, RS232
Fokusa garums 4.9mm ~ 94mm
Diafragma F1.6~F2.8
Slēdža ātrums 1/25 ~ 1/10,000 sec
Baltā balanss Auto, manual
Ekspozīcija Auto, Manual
Fokuss Auto, Manual
Attēla apgriešana (flip) ir
3D NR ir
Izmērs (W x H x D) [mm] 190 x 185 x 138
Svars [kg] 1.5

Garantija

  • AI-Powered Human Face Recognition
  • 3 Tracking modes and 2 Framing modes
  • Mount upright or inverted
  • HDMI, Ethernet, 3G-SDI and USB simultaneous output
  • 1080p 60fps with 20x Optical Zoom
  • 5-Year Warranty

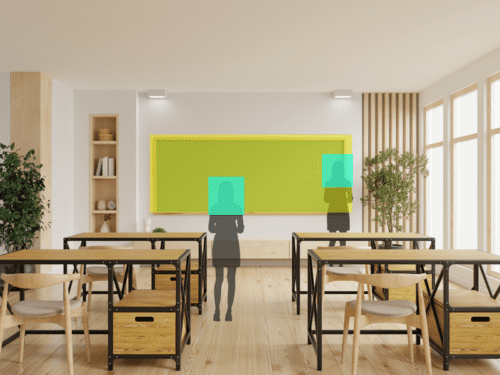

Stage Tracking and Everywhere Tracking Mode

In Stage Tracking mode, the VC-TR40 will pan left and right to follow a presenter within a defined area. In the Everywhere Tracking mode, the camera will continuously track the presenter’s movement left and right, forwards and backward.

VC-TR40 - 0202211290836427899
VC-TR40 - 0202211290837155114

Partition Tracking Mode

When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.

Gesture Control Tracking Method

The VC-TR40 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.

VC-TR40 - 0202211290837493282
VC-TR40 - 0202211290838157589

Auto-Framing and Partition Framing Mode

With the Auto-framing function, the VC-TR40 will dynamically adjust to capture all delegates, re-framing the view if participants join or leave during the session. In Partition-Framing mode, the camera will go to a preset position when the presenter walks in. When the presenter walks out the area, the camera will go back to the Auto-Framing mode.

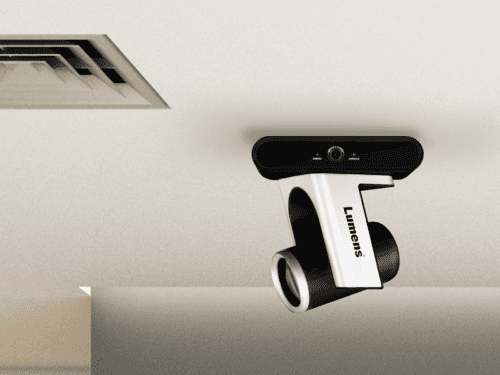

Flexible Mounting

The VC-TR40 can be positioned upright or suspended from the ceiling installation. When inverted, the camera can re-orient the image and flip

VC-TR40 - 0202211290838477135
